The basic package includes:
- Flow-K uroflowmeter
- Container for urine gathering
- Glass platform for container installation
- Uroflowmetry stand
- Extension interface cable, 3 m
- Extension interface cable, 5 m
- Software CD
- User’s Guide
- Device passport
Additional equipment can be supplied in agreement with the customer:
- Micturition chair (allows investigation of both men and women)
- Foot pedal
- Laptop / PC
- Laser Printer
The price is determined from the table:
Equipment |
Price |
Uroflowmeter + Stand #1 |
€1400* |
Uroflowmeter + Stand #2 + Chair |
€1500* |
Pedal |
€25 |
Laptop ** |
€450 |
Laser printer ** |
€150 |
* Prices do not include shipping costs.
Local pickup in Dnipro, Ukraine, is available, as well as delivery services transportation (EMS, etc.)
** According to the client’s wishes laptop and printer model can be changed. If it is necessary, the uroflowmeter can be equipped with a tablet or with a PC and a monitor.
|

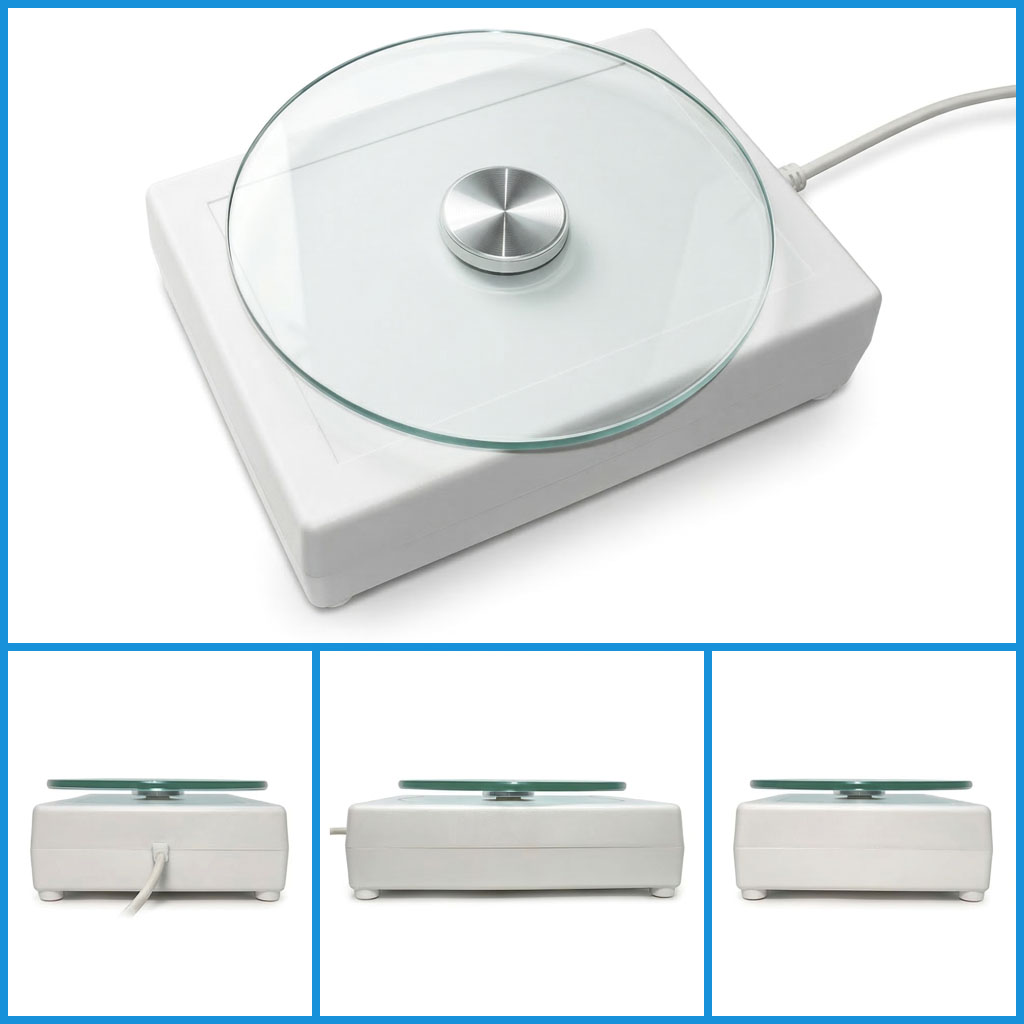

Flow-K uroflowmeter
It is intended to determine urodynamic disturbances of lower urinary tract.
Dimensions: 19x16x7 cm
Weight: 0.85 kg |
|

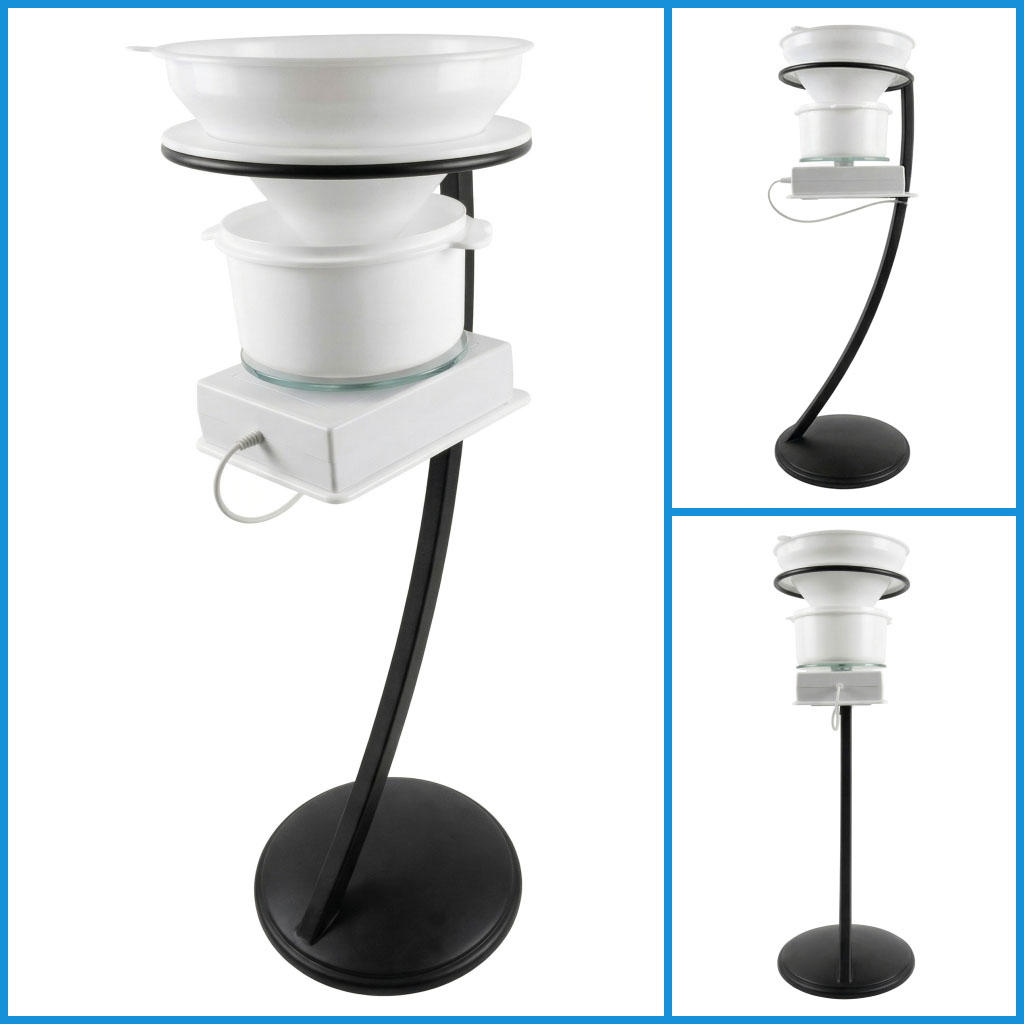

It is designed for using with the uroflowmeter in package without a chair.
Stand height is fixed.
Stand allows men to urinate from a standing position.
Equipment: stand, tank, funnel.
Dimensions: 25x25x73 cm
Weight: 3 kg |
|

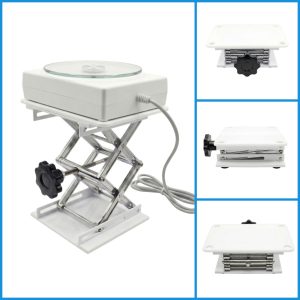

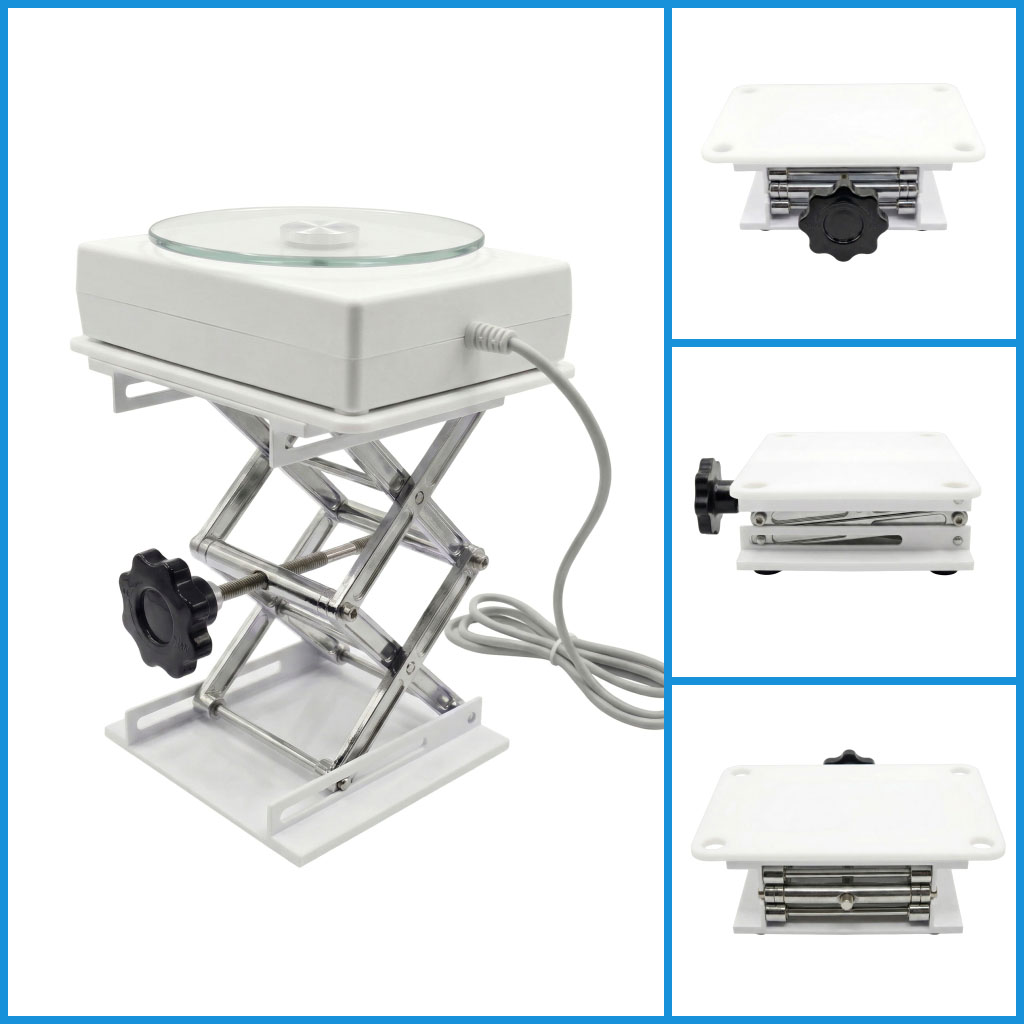

Stand number 2
It is designed for using with the uroflowmeter and a micturition chair.
Stand height is adjustable in 10-30 cm range. Stand is installed under the seat.
Stand with the chair allows men to urinate while standing and sitting, women from a sitting position.
Equipment: stand, tank.
Dimensions: 20x19x10 cm (fully folded) 20x19x30 cm (fully raised)
Weight: 1.3 kg |
|

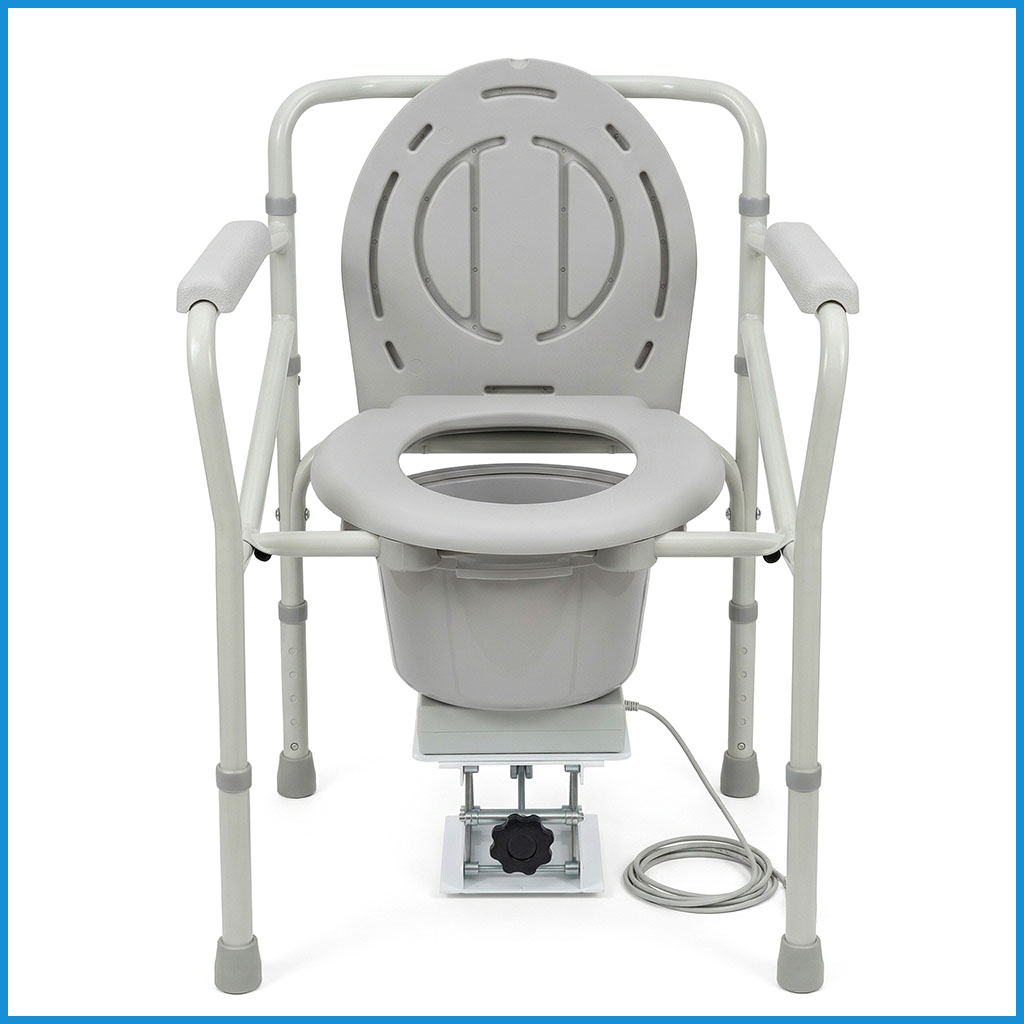

Micturition chair
It is intended for using with the uroflowmeter and the stand number 2.
The chair is foldable and height adjustable, chair cover rises and allows urinating from a standing position.
The chair with the stand number 2 allows men to urinate while standing or sitting, and women from a sitting position.
The seat number 1 or number 2 is supplied by the fact of availability.
Equipment: chair.
Dimensions: 52x23x78 cm (when folded)
Weight: 10 kg |
|

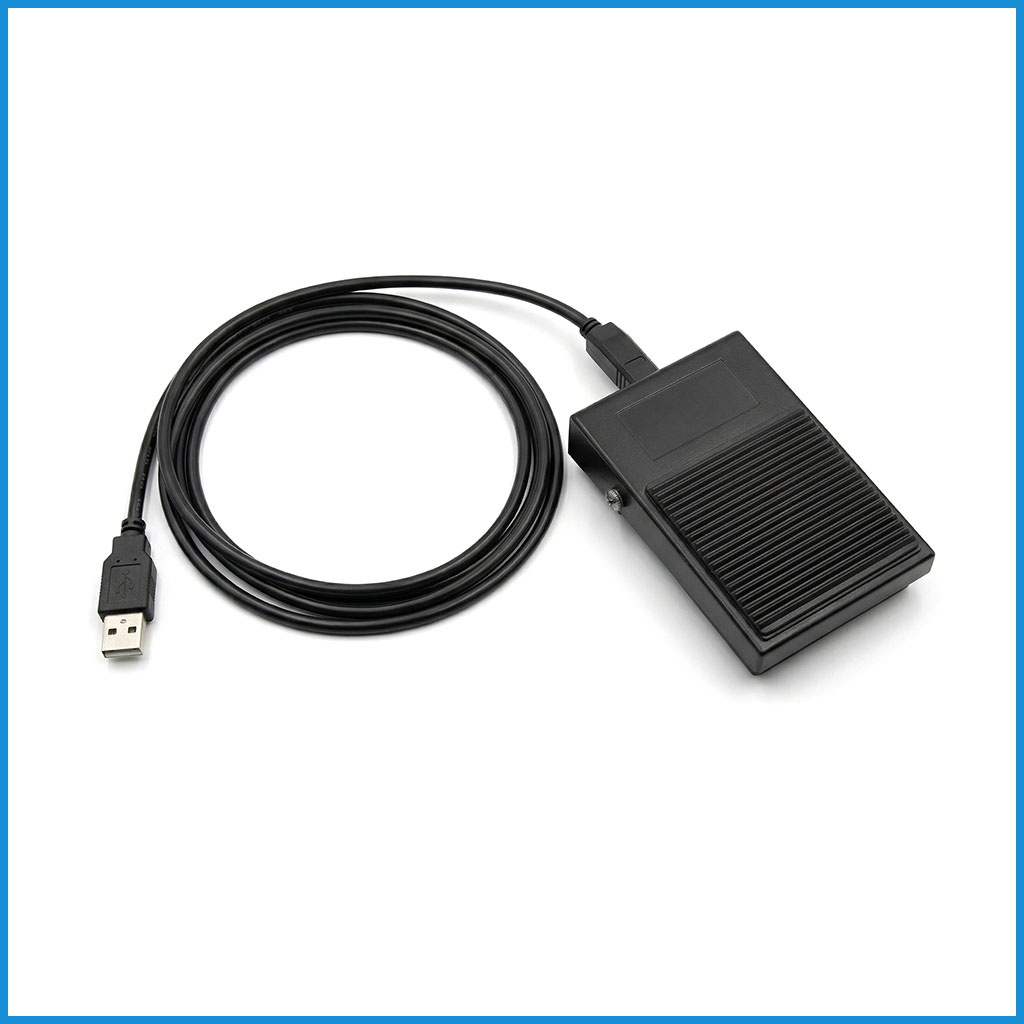

Pedal
Foot pedal is used with the uroflowmeter. By pressing the pedal, the patient can start his own examination. After pressing you will hear a sound signal.
Equipment: pedal, USB cable.
Dimensions: 7x10x2 cm
Weight: 0.25 kg |
|

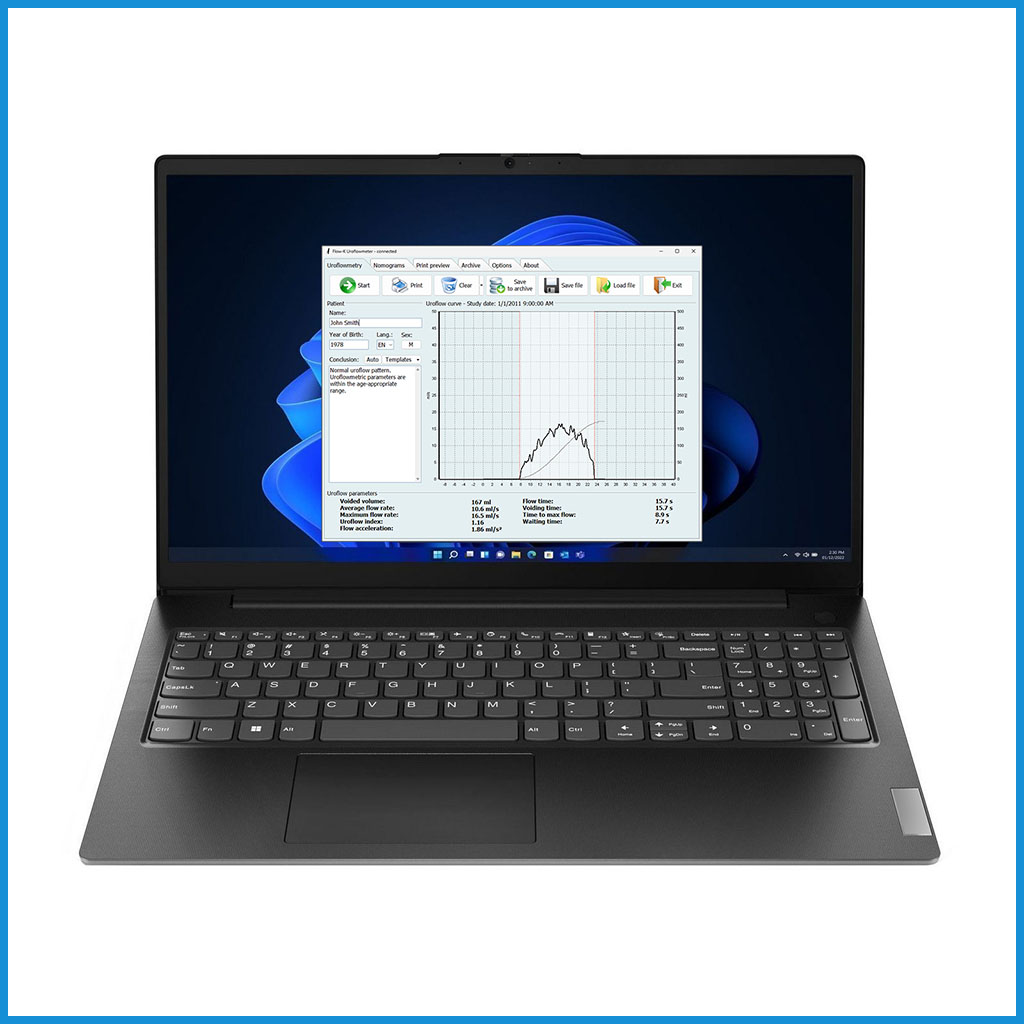

Laptop
A simple laptop, its performance is enough for working with the uroflowmeter and fast data backup. The large 15.6’ screen, preinstalled genuine Windows. According to the client’s wishes laptop model can be changed. If it is necessary, the uroflowmeter can be equipped with a tablet or with a PC and a monitor.
Equipment: manufacturer’s equipment.
Dimensions: 37x25x3 cm
Weight: 2.5 kg |
|

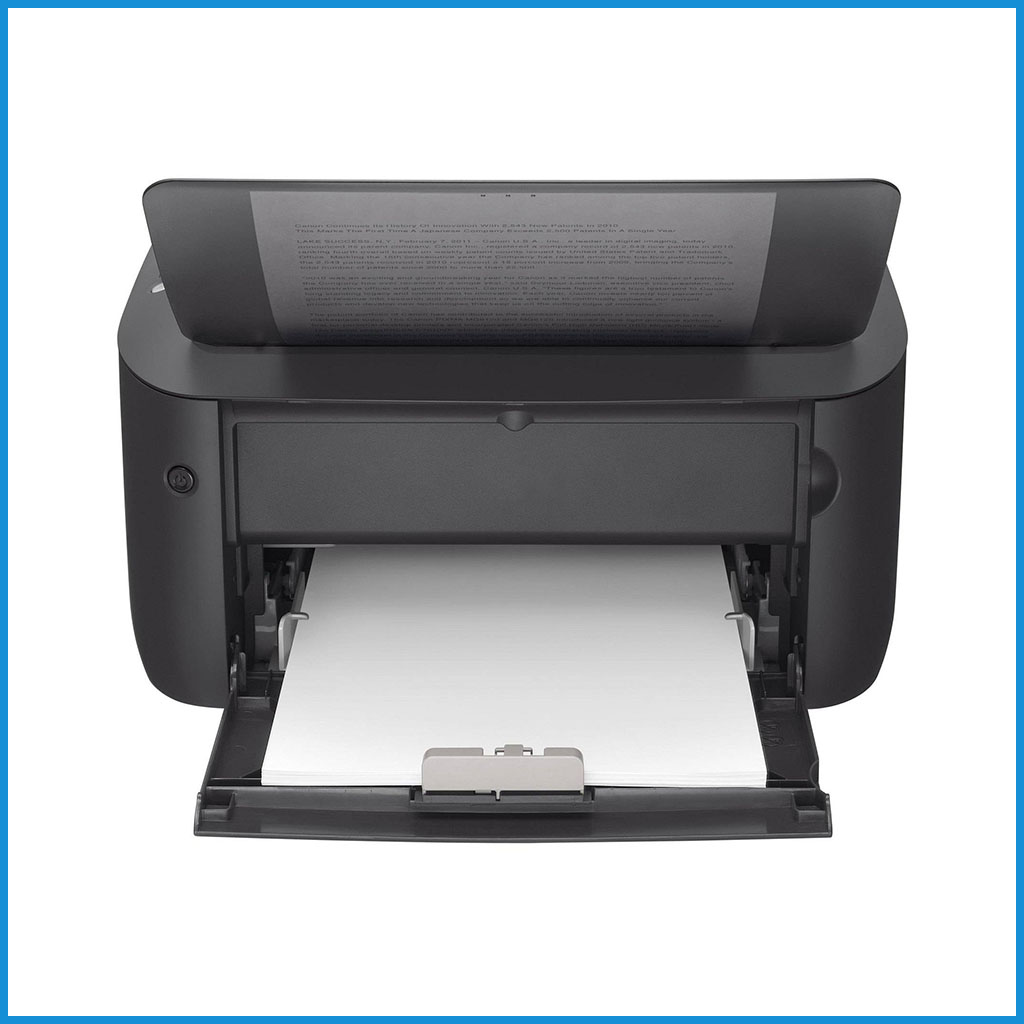

Printer
Laser Printer. Fast print speed and cartridge refilling. According to the client’s wishes printer model can be changed.
Equipment: equipment manufacturer.
Dimensions: 34x23x19 cm
Weight: 4.2 kg |
